Heavy Electric Forklift Trucks 18-33 ton

By combining a highly efficient electrically powered motor, with direct drive hydraulics you get a driveline combination that will deliver on power and productivity while producing zero carbon emissions at source, reducing your carbon footprint.

The complete system has been designed to minimise energy losses, and regenerative power from the braking system returns power to the batteries, further enhancing the overall efficiency of Kalmar’s Electric Forklift system.

Batteries and chargers are a big part of your overall investment, making it critical that you get a solution that is matched to your operational requirements. This is why Kalmar has taken a modular approach to our battery and charging solutions. There are:

• four different charging solutions with charging capacities from 50-350 kW

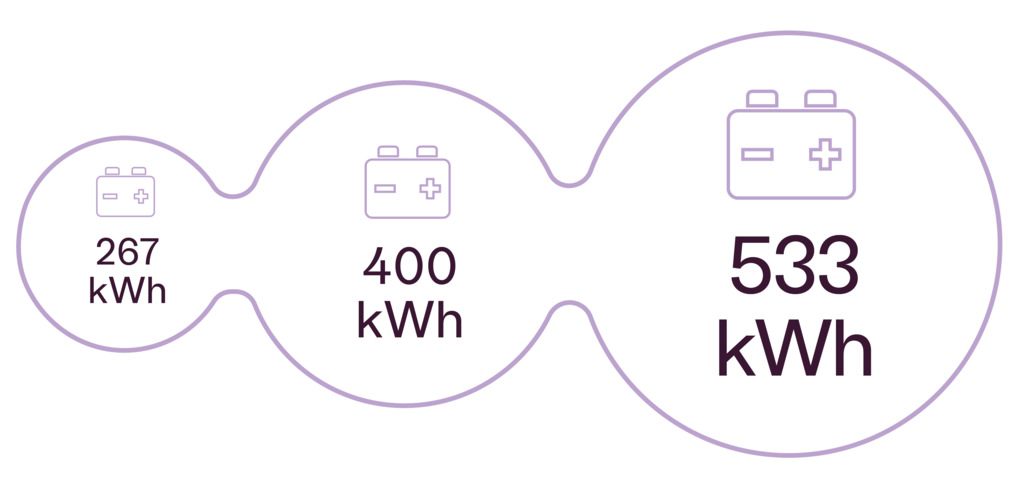

• three different Li-ion capacities to choose from.

Our battery solutions all come with a 5-year warranty and have an expected 10-12 year life*. Kalmar will help you work out which battery option and charging solution is right for your business based on your current work cycles.

* First life measured as 80% capacity left in the battery.

Kalmar’s Battery Monitoring System continually monitors the:

• voltage
• temperature
• coolant
• current flow.

This ensures your electrically powered forklift operates optimally over its lifetime. The system also controls the charging of the batteries by redirecting recovered energy back into the battery packs making sure you are using the power available as efficiently as possible.

With any electrically powered high voltage system you need to be extra safe which is why we have encased and shielded all high voltage lines. Should any connection be interrupted, the whole system will automatically shut down keeping your team safe. Kalmar has specifically designed a high voltage training course to enhance the skills of your workers and keep them extra safe.

Any load from 18-33 tonnes with the right mast and attachment fitted. Kalmar offers:

• three different lifting masts
• a range of forks and mounts
• an extensive range of attachments for most of your heavy lifting requirements.

A Kalmar Electric Heavy Forklift is ideal for moving containers, slabs, billets, pipes, coils, lumber, pulp, biomass material, concrete, building material and parts.

The versatile machine widely known as a forklift goes by many names, including lift trucks, forklift trucks, and hoist lifts. At Kalmar, however, the standardized term used across the product line is 'forklift truck', similar to the official equipment name used by many in the industry. For forklifts specifically designed to handle extremely heavy loads, Kalmar also use the terms 'heavy-duty forklifts' and 'high-capacity forklifts,' signifying their specialized capabilities. Regardless of the names used, these powerful tools all serve the crucial role of efficiently lifting and transporting heavy materials.
